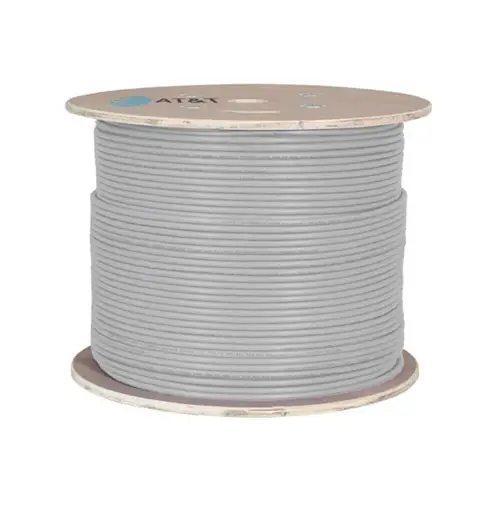

AT&T 4-Pair 24 AWG U/UTP CAT6 LS0H IEC 60332-1 Cable Gray 500m drum
AT&T 4-Pair 24 AWG U/UTP CAT6 LS0H IEC 60332-1 Cable Gray 500m drum
  1. AT&T 4-Pair 24 AWG U/UTP CAT6 LS0H IEC 60332-1 Cable Gray 500m drum
  2. AT&T 4-Pair 24 AWG U/UTP CAT6 LS0H IEC 60332-1 Cable Gray 500m drum

AT&T 4-Pair 24 AWG U/UTP CAT6 LS0H IEC 60332-1 Cable Gray 500m drum

Original price was: 15.500,00 EGP.Current price is: 13.500,00 EGP.

Unlock the potential of your network infrastructure with the AT&T 500M Grey Unshielded U/FTP CAT6 Cable Drum, designed for the discerning tech enthusiast who demands exceptional speed and reliability in every connection. Encapsulated in a sleek, robust grey exterior, this cable epitomizes superior performance with its advanced unshielded foiled twisted pair (U/FTP) design. This ensures minimal interference and maximum data integrity, satisfying the hunger for rapid data transfer rates and seamless communication without compromise. Ideal for both residential and commercial installations, this CAT6 cable promises future-proof connectivity, standing as the backbone of your digital ecosystem. Step into a realm where your multimedia experiences are flawlessly crisp, and your network ecosystem breathes agility and endurance. Transform the way you connect, share, and compete with a cable that redefines standard. Embrace cutting-edge technology with AT&T amp;’s hallmark of quality and innovation. Elevate your network infrastructure now and let this cable drum be the silent yet powerful force behind every facet of your digital life.

49 in stock

SKU: 11U06HA004T-GY2K Category: Tags: , , Brand:

AT&T CopperLine Category 6A Unshielded U/FTP 100 Ohm Horizontal Indoor LAN Cables are designed to the highest standards in the industry.

By eliminating the spine separator to enable greater flexibility, AT&T have redesigned the Unshielded (U/FTP) cable with each individual twisted pair foil shielded to prevent AXT (Alien Cross Talk). This design is 30% faster to terminate and allows the cable exceed every industry standard.

This 4-Pair 23 AWG Unshielded CAT6A LS0H (Low Smoke Zero Halogen) IEC 60332-1 Cable is Grey in colour and conveniently packaged on a drum.

Specifications:

  • 4 pair Unshielded cables
  • Frequency range: 1-500 MHz
  • Conductor: 23 AWG Solid bare copper
  • Insulation: PO
  • Color code: Modified ANSI/TIA-568-C.2 (solid colours)
  • Shield: None
  • Jacket: LS0H

Note: Alien-crosstalk is minimised by non-grounded aluminium foils wrapped over each pair.

Mechanical & Electrical Properties:

  • Pulling force: 50 N/mm2 max.
  • Short term bend radius: 8xOD mm
  • Long term bend radius: 4xOD mm
  • Operating temperature: -20 to +60C
  • Installation temperature: 0 to +50C
  • DC resistance: 80 Ohm/Km max.
  • Capacitance: 56 max. pF/m @ 1KHz
  • Voltage rating: 75 Vdc max.
  • Velocity of propagation (NVP): 78% nom.

Standard & EU Directives Conformance:

  • Category 6A cable according to IEC 61156-5
  • Category 6A cable according to ANSI/TIA-568-C.2
  • 500MHz cable according to EN 50288-10-1
  • IEC 60332-1, IEC 60332-3-24 or IEC 60332-3-25 flame tests
  • IEC 60754 & IEC 61034 (LS0H cables)
  • EU Directive 2011/65/EU (RoHS-2)
Weight 50 kg
length

500 M Per Box
